Gear units

These pinions have two pinion halves which are spring-loaded against each other to provide zero backlash

Pinion Gears

Welcome to the widest range of standard racks & pinions in the World!

Consisting of both helical & straight (spur) tooth versions, in an assortment of sizes,

materials and quality levels, to meet almost any axis drive requirements.

These drives are perfect for a wide range of applications,

including axis drives requiring precise positioning & repeatability, traveling gantries & columns, pick & place robots,

CNC routers and material handling systems.   Heavy load capacities and duty cycles can also be easily handled with drives.

Industries served include Material Handling, Automation, Automotive, Aerospace, Machine Tool and Robotics.

The pinion product range consists of metric pitches from module 1.0 to 12.0,

in various styles including helical, straight (spur), ISO flanged,

split-pinion (zero backlash) and circular pitch. Quality levels available include soft,

induction-hardened and hardened & ground (up to AGMA 12+ and DIN 5).

Typical delivery time for these standard components is 2 to 3 weeks,

which is ideal for OEM's requiring just-in-time delivery schedules.

Special and/or modified components are always possible - please consult the factory.

Advantages of Using Small Pinions:   When it comes to selecting a pinion for use in a rack & pinion drive system,

the pinion diameter has a huge effect on the system,

including the gearbox torque, size, ratio, linear backlash, linear stiffness and resonant frequency of the system.

Total Gear Solutions

andrizds offers Total Gear Solutions to its global customer base.

We are a leader in the development and manufacture of production systems for all types of gears

including design software for gears and power transmission systems, gear production machinery,

metrology systems, automation solutions, related equipment and plastic gears.

MyWorkpiece

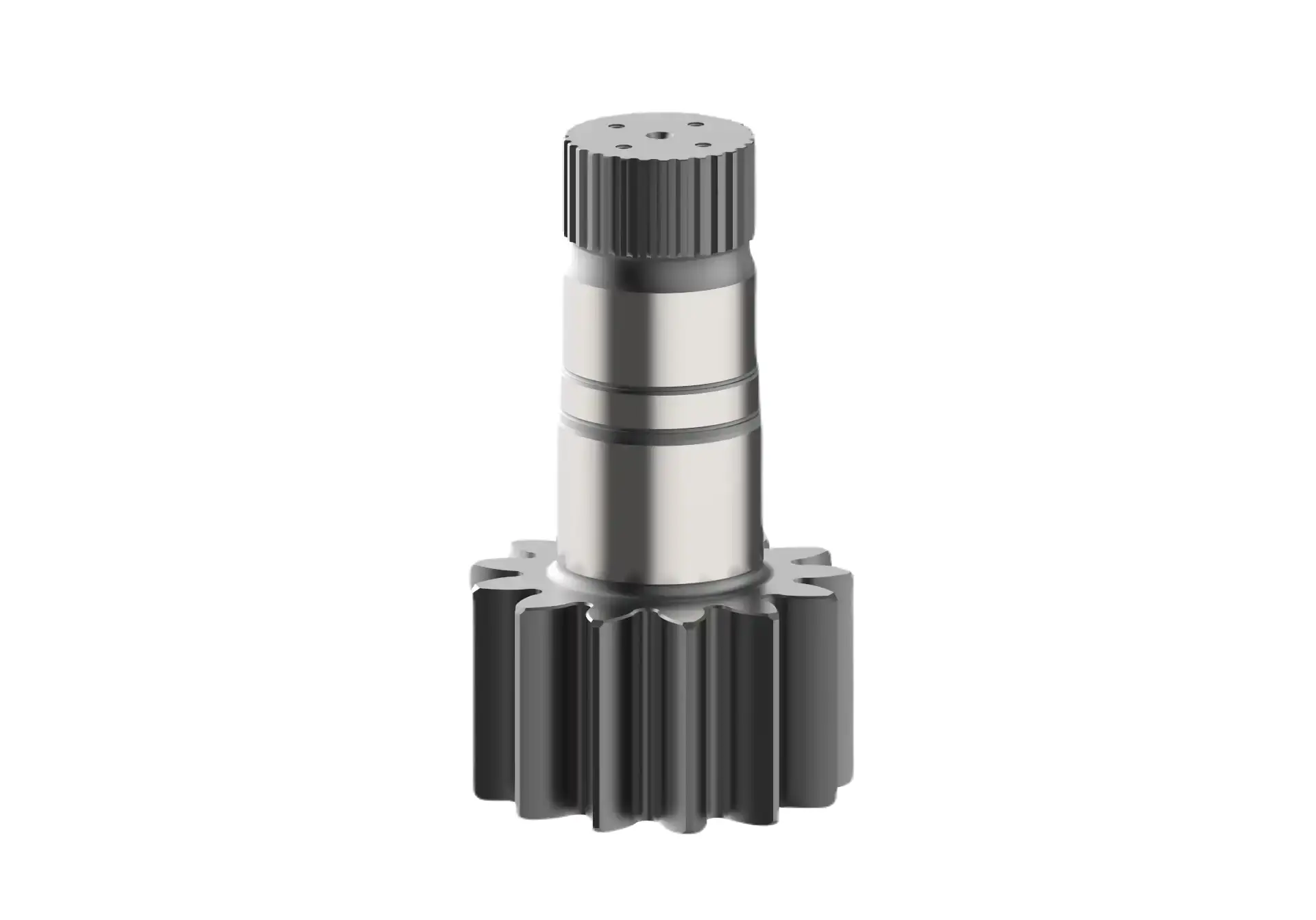

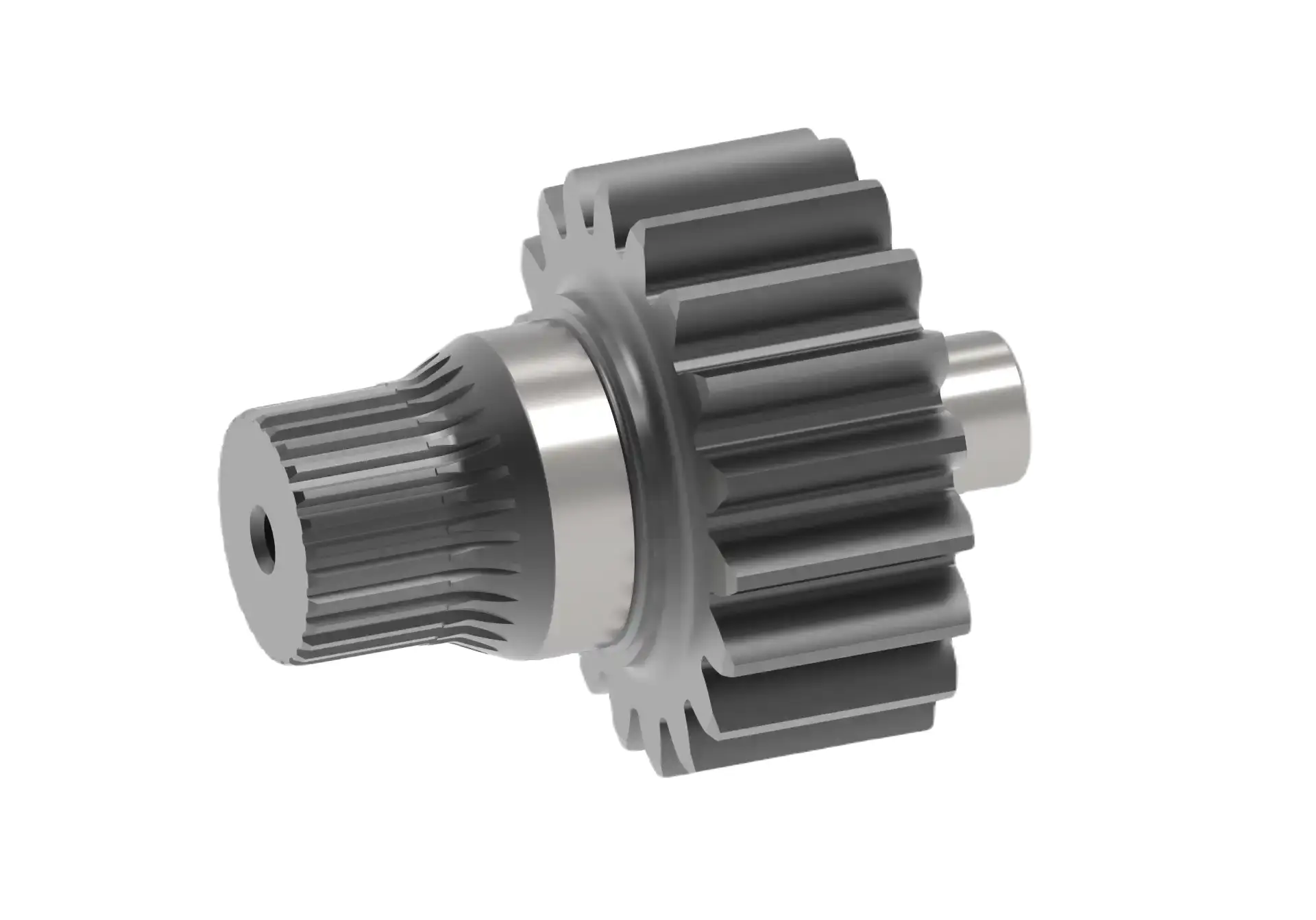

Pinion

Spiral Bevel Ring Gear & Pinion

Hypoid Ring Gear & Pinion

E-Drive Stepped Pinion

Shoulder Work

Planetary Carrier

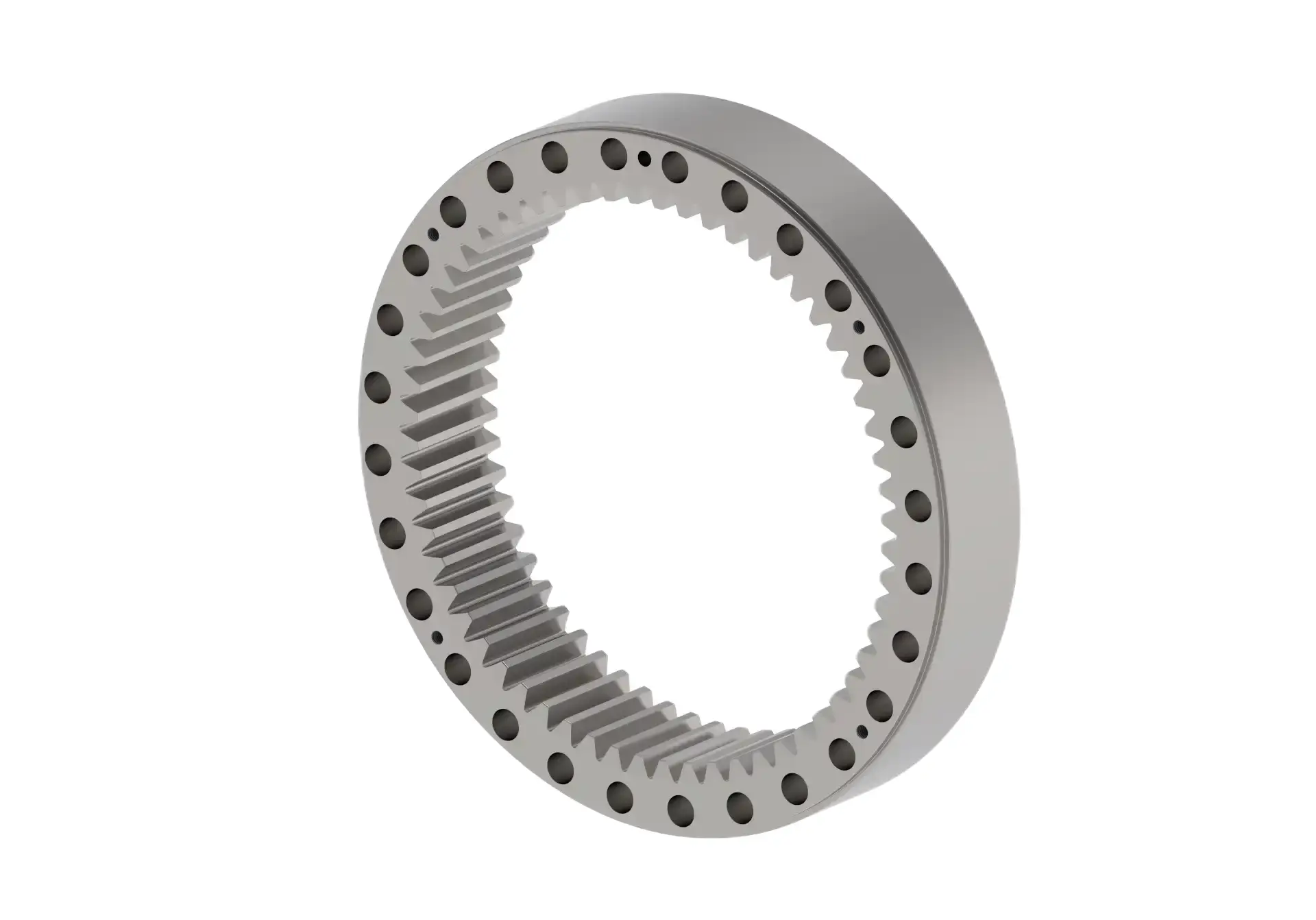

Ring Gear Internal

Steering Pinion

Rotor
