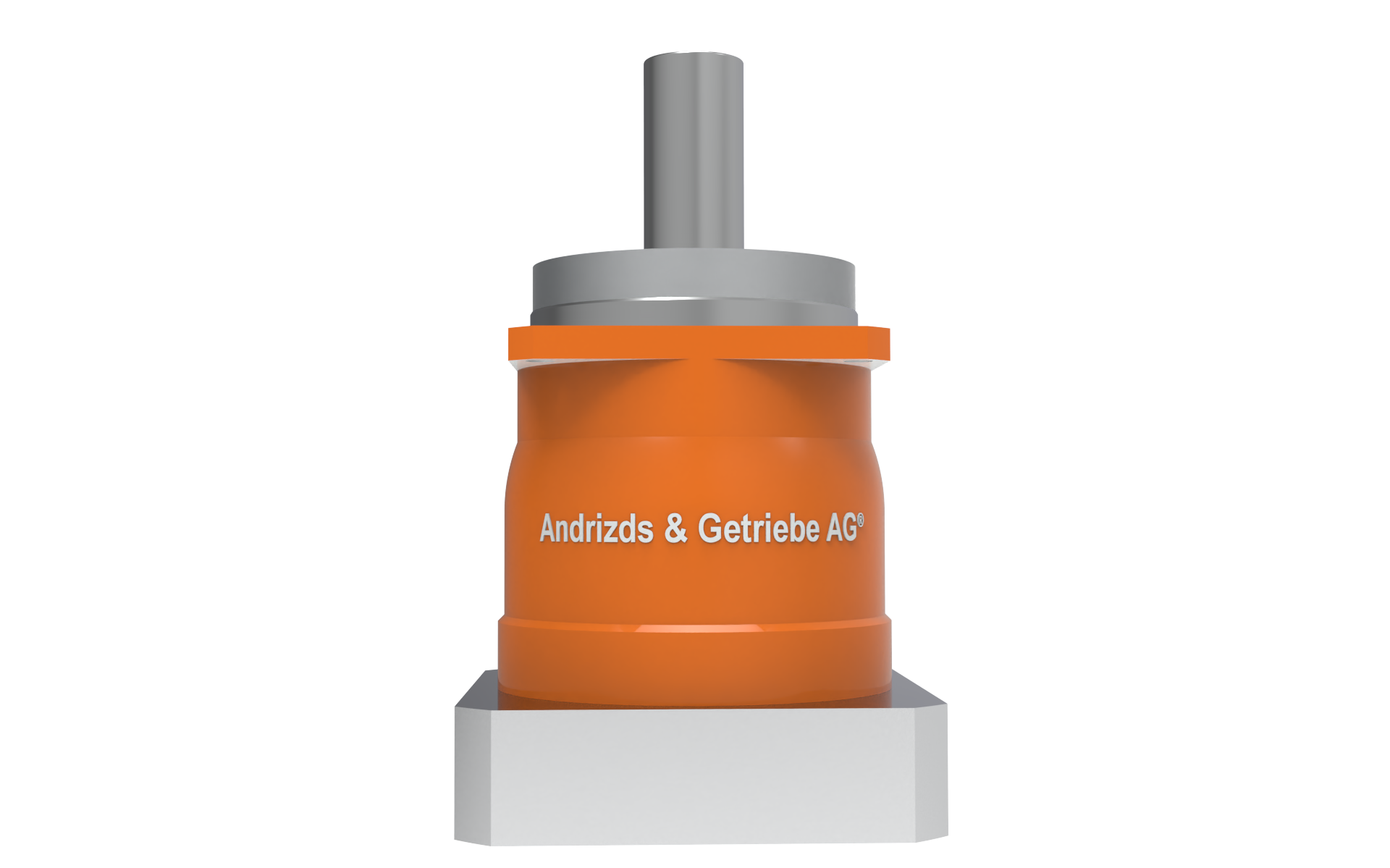

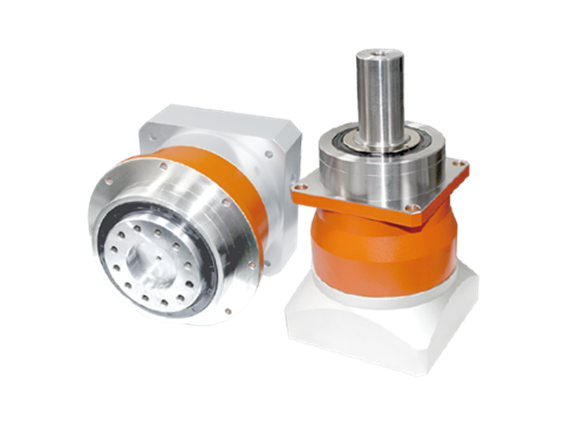

DPS Planetary gearbox
Hypoid Gearbox DS-T
Full power with the highest precision. Drive technology from ANDRlZDS
Technical data
| Sizes | 060 075, 100, 140，180,210,240 | |
| Nominal output torque S5 | T2N [Nm] | Up to 4300 |
| Acceleration torque S5 | T2B [Nm] | Up to 6500 |
| Ratios | i | From to 3 to 100 |
| Backlash | Jt [arcmin] | 1 ; 3 ; 5 |
| Rigidity (Stiffness) | •• | |
| Input Speed | ••• | |
| Adaptability | ••• | |
| Noise | ••• | |
| Duty cycle | S5 | 60% |
| S1 | 100% |
Performance data ：DPS-060-GS1-3-5C1-1K00
Max. torque T2α
30 Nm
Emergency stop torque
90 Nm
Max. input speed
7000 min-1
Permitted average input speed
5000 min-1
Max. tilting moment
160 Nm
Max. axial force
1500N
Max. lateral force
3000 N
Mass moment of inertia
0.57 kgcm2
Weight
kg
Lubrication
Lubricated for life
Max. permitted housing temperature
90 °C
Protection class
IP 65
Operating noise
≤ 64 dB(A)
Performance data ：DPS-075-GS1-3-5C1-1K00
Max. torque T2α
105 Nm
Emergency stop torque
315 Nm
Max. input speed
7,500 min-1
Permitted average input speed
2,200 min-1
Max. tilting moment
270Nm
Max. axial force
2250 N
Max. lateral force
4700 N
Mass moment of inertia
0.57 kgcm2
Weight
kg
Lubrication
Lubricated for life
Max. permitted housing temperature
90 °C
Protection class
IP 65
Operating noise
≤ 64 dB(A)
Performance data ：DPS-100-GS1-3-5C1-1K00
Max. torque T2α
200 Nm
Emergency stop torque
600 Nm
Max. input speed
7000 min-1
Permitted average input speed
3600 min-1
Max. tilting moment
550Nm
Max. axial force
3350N
Max. lateral force
6700N
Mass moment of inertia
0.57 kgcm2
Weight
00 kg
Lubrication
Lubricated for life
Max. permitted housing temperature
90 °C
Protection class
IP 65
Operating noise
≤ 64 dB(A)
Performance data ：DPS-140-GS1-3-5C1-1K00
Max. torque T2α
395 Nm
Emergency stop torque
1185 Nm
Max. input speed
5000 min-1
Permitted average input speed
3000min-1
Max. tilting moment
1050Nm
Max. axial force
5000 N
Max. lateral force
10000 N
Mass moment of inertia
0.57 kgcm2
Weight
00 kg
Lubrication
Lubricated for life
Max. permitted housing temperature
90 °C
Protection class
IP 65
Operating noise
≤ 64 dB(A)
Performance data ：DPS-180-GS1-3-5C1-1K00
Max. torque T2α
825 Nm
Emergency stop torque
2475 Nm
Max. input speed
4500 min-1
Permitted average input speed
2700 min-1
Max. tilting moment
1740 Nm
Max. axial force
7500N
Max. lateral force
15000 N
Mass moment of inertia
0.57 kgcm2
Weight
00 kg
Lubrication
Lubricated for life
Max. permitted housing temperature
90 °C
Protection class
IP 65
Operating noise
≤ 64 dB(A)
Performance data ：DPS-210-GS1-3-5C1-1K00
Max. torque T2α
1385 Nm
Emergency stop torque
4155Nm
Max. input speed
4000 min-1
Permitted average input speed
2400 min-1
Max. tilting moment
3350 Nm
Max. axial force
11000 N
Max. lateral force
22000N
Mass moment of inertia
0.57 kgcm2
Weight
00kg
Lubrication
Lubricated for life
Max. permitted housing temperature
90 °C
Protection class
IP 65
Operating noise
≤ 64 dB(A)
Performance data ：DPS-240-GS1-3-5C1-1K00
Max. torque T2α
3110Nm
Emergency stop torque
9330Nm
Max. input speed
3100 min-1
Permitted average input speed
2100 min-1
Max. tilting moment
5420 Nm
Max. axial force
15000N
Max. lateral force
30000N
Mass moment of inertia
0.57 kgcm2
Weight
00kg
Lubrication
Lubricated for life
Max. permitted housing temperature
90 °C
Protection class
IP 65
Operating noise
≤ 64 dB(A)
