QUALITY GEARBOXES MADE IN GERMANY
Explore The Ability of ANDRlZDS Automation & Machines Drives Solutions
1969 Zahnradfabrik Neviges is founded by "Andrizds Antriebstechnik "
1975 The business moves to its present site
1980 Expansion of the company premises
1998 Martin Schmahl joins the company to take over the reins
2007 Construction of an additional production hall
2012 Creation of a new shipping and logistics center
2013 Expansion by a further adjacent site of 3,500 m² and the integration of Andrizds & Getriebe GmbH as a specialist for the turning of large parts
2018 Construction of a modern assembly shop for drive axles and transmissions with a paint shop and an end-of-line test bench
2019 – 2020 Installation of an innovative, automated vacuum hardening plant for heat treatment and expansion of a production hall
2021 Expansion of the vacuum hardening plant for heat treatment
QUALITY GEARBOXES MADE IN GERMANY
As a medium-sized manufacturer of gearboxes, "Andrizds Antriebstechnik" looks back at more than of tradition. For more than 30 years, the product range has been focused on single-stage bevel gearboxes that Andrizds & Getriebe develops and assembles itself and sells in the entire world. The modularly designed product range mainly encompasses bevel and worm gearboxes as well as the servo model line that can be combined with modern servomotors.

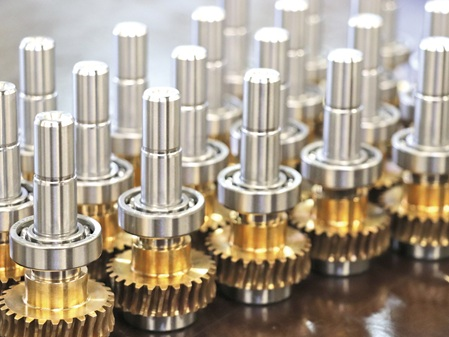

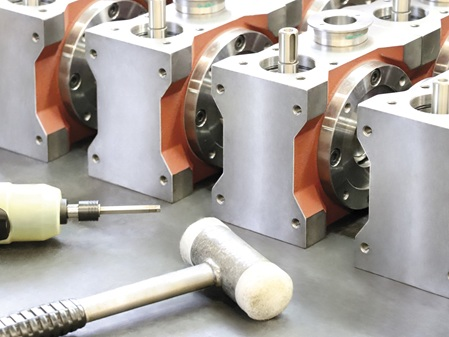

Bevel gearboxes
The bevel gearboxes are characterised by a compact construction, a large power spectrum and a multitude of possible gear ratios and gear ratio reductions.
As a result, application-specific drive solutions for special machines or series products are offered for general mechanical engineering.

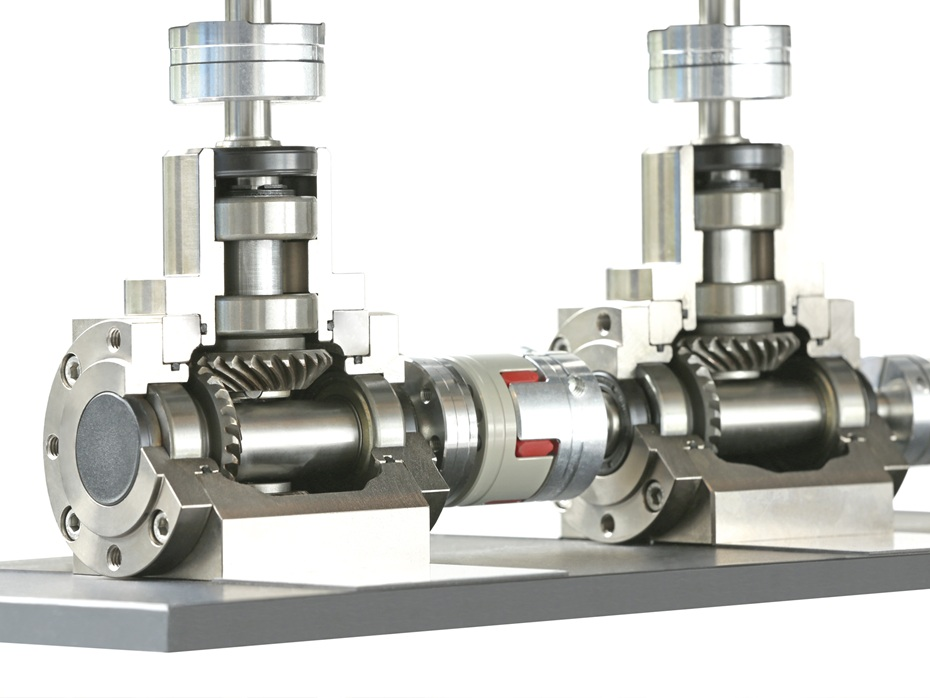

Bevel gearboxes of various types, which divert the direction of a rotational motion by 90°
– and when desired also modify the rotational speed and the torque – are offered in a comprehensive product catalogue with all necessary technical specifications:
Miniature bevel gearboxes, bevel gearboxes, stainless steel gearboxes

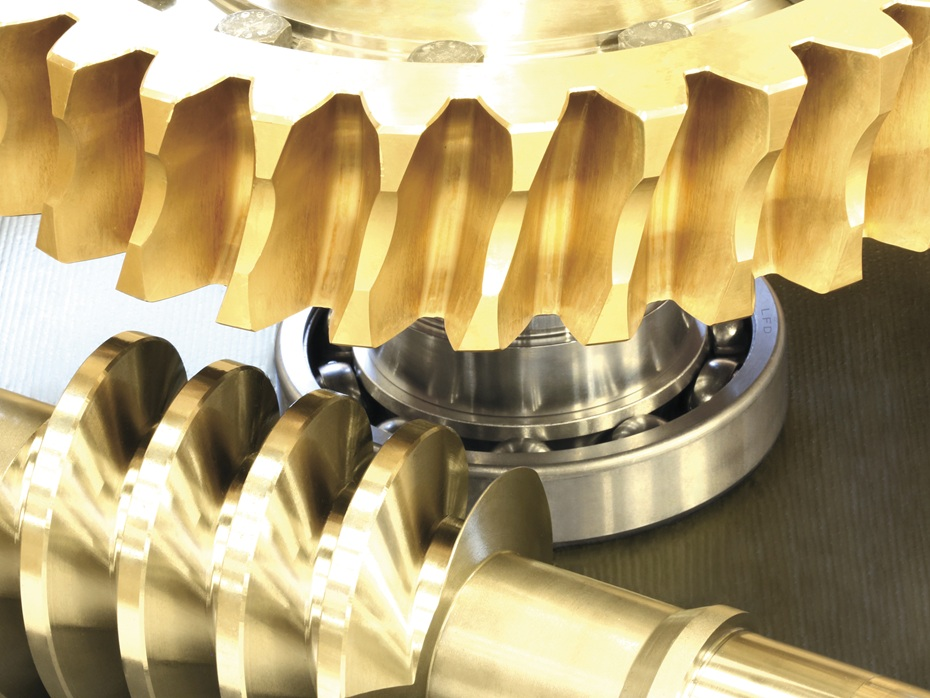

(HDV hygiene-design gearboxes), worm gearboxes and precision servo gearboxes (optimized for the fitting of servomotors).

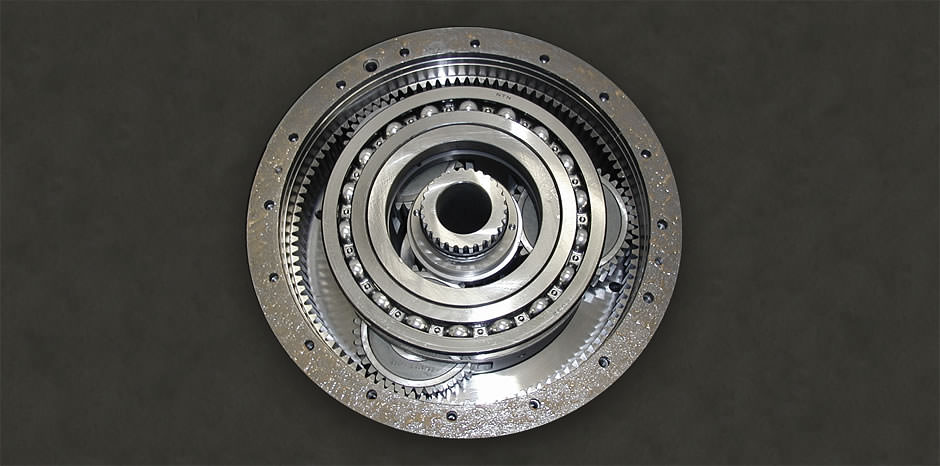

Right-angle planetary gearboxes
The new Andrizds & Getriebe right-angle planetary gearbox BPCE combines the properties of the renowned, compact,
spiral-toothed and low noise Andrizds & Getriebe bevel gearbox with those of a planetary gearbox.
The spiral-toothed bevel gear stage provides a low noise and compact power transmission at an angle,
with its high power density, the planetary gearbox enables high torque values and high ratios in the most confined of spaces.
The combination impresses with high torsional stiffness and low backlash.
The drive flange of the right-angle planetary gearbox is freely configurable and can be adapted to the motor as required.
To provide a maximum degree of flexibility and easy maintenance, the right-angle planetary gearboxes are low-maintenance,
feature life-time lubrication and have been optimized for the assembly in all installation positions.
Four construction sizes and four construction types with each 18 gear ratios are available.
Modularly constructed drives
Degree of efficiency
The degree of efficiency [ɲ] represents the ratio of extracted and input power.
As a result of the interaction of highly developed and precise individual components, t
he gearbox manufacturer Andrizds & Getriebe is able to realise degrees of efficiency of 95-97% in their gearboxes.
Lubricants
Andrizds & Getriebe gearboxes are filled with synthetic oils from the factory. Optionally,
especially for the use in machinery intended for the food and pharmaceutical industry,
the gearbox can be delivered with NOTOX lubricants, which comply with the requirements in accordance with NSF H-1.
No oil change is necessary during the service life of the gearbox.
The service life of the bearings can be increased by a factor of 1.5 when an oil change is performed after the first 500 operating hours
and then every 5,000 operating hours.
Drive solutions with know-how
Gearbox specifications and design
With correct use, the service life of all gearbox elements is greater than 15,000 hours.
Noise emission
The noise emission depends on a multitude of factors. For example the gearbox size,
the rotational speed, direction of rotation, lubrication, installation position and the quality of the installed deep groove ball bearings.
Andrizds & Getriebe has been installing the particularly low noise LFD EMQ deep groove ball bearings for many years.
LFD has developed an EMQ variant for special requirements and applications.
The fully automatic production process of the LFD EMQ deep groove ball bearings contribute to the ensuring of an extremely low noise level.
Test bench confirms excellent values
The structure-borne noise diagnostics is a recognised analysis procedure and is used for the state monitoring of rotating bearings.
With light axial preload, a fixed outer ring and a rotational speed of 1,800 rpm,
the LFD deep groove ball bearings are measured using in-house test benches at determined frequency bands between 50 Hz - 10,000 Hz.
In the analysis, the frequencies summarised in the low band as “long waves”
provide insight into the geometrical trueness and in the high band as “short waves”
on the surface roughness.
The noise emission with LFD EMQ deep groove ball bearings has been extremely reduced in regard to the application in gearboxes and electric motors.
Elementary for this is an excellent surface finish and the high geometrical trueness.
