DQF Planetary Gearbox

Facebook
X
LinkedIn
Prev: Gear solutions
Next: DPS Planetary gearbox
DSG 8000 Spindle drive

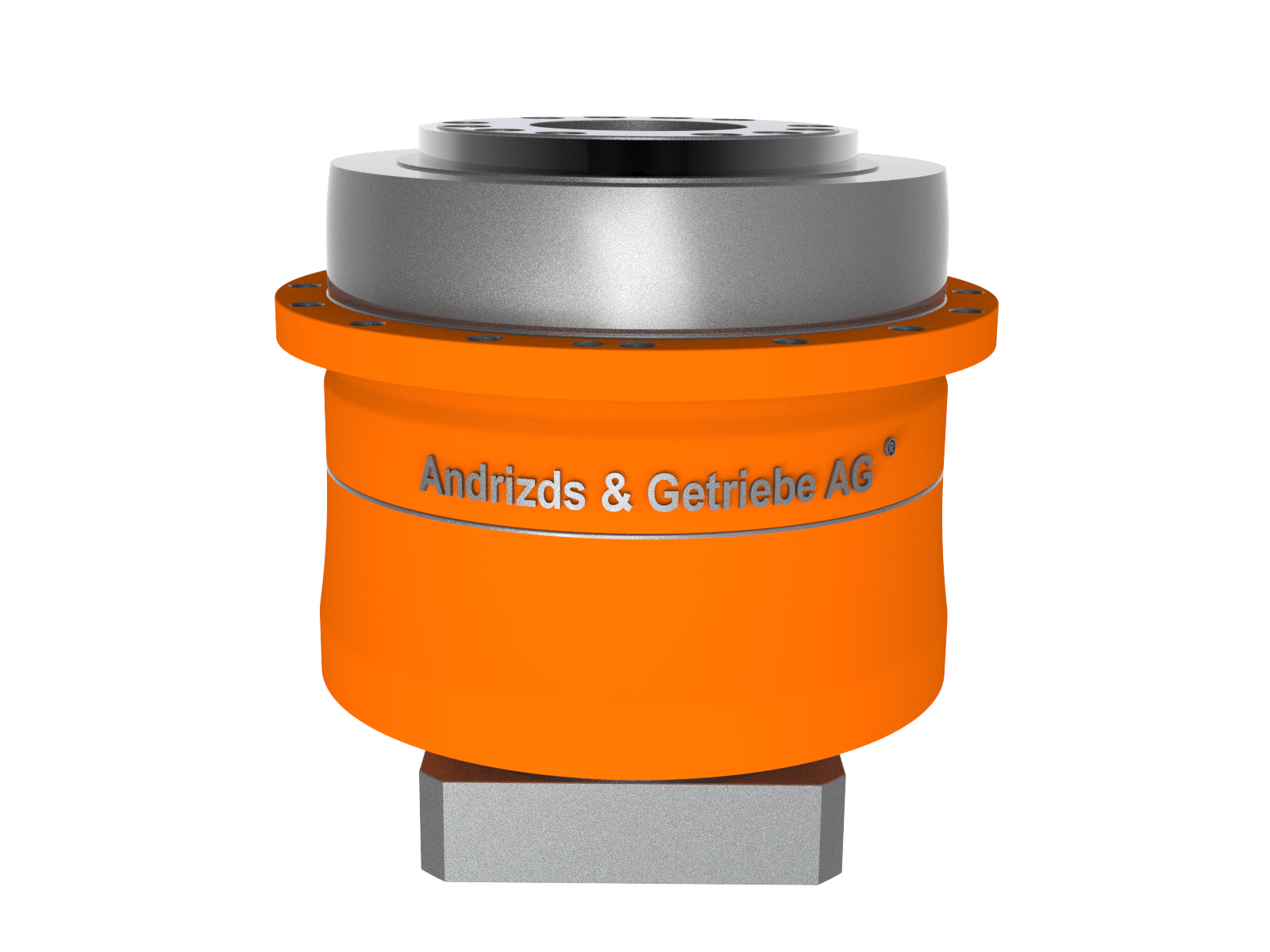

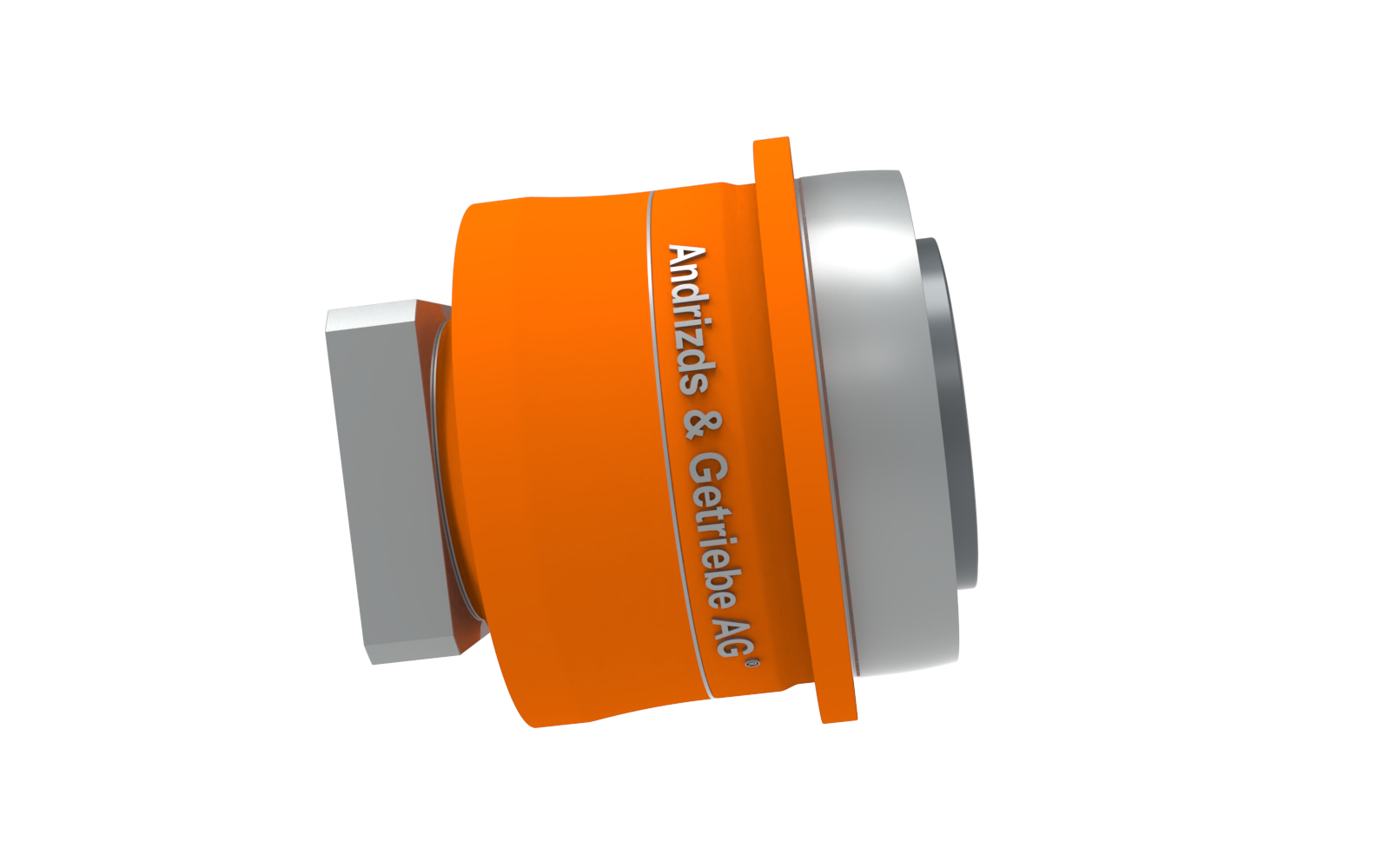

High-precision DQF   planetary gearboxes


Sizes
090, 100, 140,200,255,285,355,450
Nominal output torque S5T2N [Nm]Up to 14000Nm
Acceleration torque S5T2B [Nm]Up to 21000Nm
RatiosiFrom to 3 to 400
BacklashJt [arcmin]1 ; 3 ; 5
Rigidity (Stiffness)
••
Input Speed
•••
Adaptability
•••
Noise
•••
Duty cycleS560%

S1100%




Full power with the highest precision.   Drive technology from   ANDRlZDS

DQF planetary gearbox HIGH TORQUE





Performance data DQF 004   i=4-100


Standard: i=4,5,7,8,10,16,20,21,25,28,31,32,35,40,50,61,64,70,91,100

Max. torque 83 Nm

Max. backlash ≤ 3 arcmin


Performance data
Max. torque T2α
83 Nm
Emergency stop torque
100 Nm
Max. input speed
7,500 min-1
Permitted average input speed
3,300 min-1
Max. tilting moment
110 Nm
Max. axial force
1,630 N
Mass moment of inertia
0.57 kgcm2
Weight
1.4 kg
Lubrication
Lubricated for life
Max. permitted housing temperature
90 °C
Protection class
IP 65
Operating noise
≤ 57 dB(A)






Performance data DQF 010   i=4-100

Standard: i=4,5,7,8,10,16,20,21,25,28,31,32,35,40,50,61,64,70,91,100

Max. torque 185 Nm

Max. backlash ≤ 3 arcmin

high torque : i=22,27.5,38.5,55,88,110,154,220

Max. torque 315 Nm

Max. backlash ≤ 1 arcmin

Performance data
Max. torque T2α
315 Nm
Emergency stop torque
525 Nm
Max. input speed
7,500 min-1
Permitted average input speed
4,000 min-1
Max. tilting moment
400 Nm
Max. axial force
2,795 N
Mass moment of inertia
0.52 kgcm2
Weight
3.2 kg
Lubrication
Lubricated for life
Max. permitted housing temperature
90 °C
Protection class
IP 65
Operating noise
≤ 57 dB(A)




Performance data DQF 140


Standard: i=4,5,7,8,10,16,20,21,25,28,31,32,35,40,50,61,64,70,91,100

Max. torque 185 Nm

Max. backlash ≤ 3 arcmin


high torque : i=22,27.5,38.5,55,66,88,110,154,220

Max. torque 583 Nm

Max. backlash ≤ 1 arcmin


Performance data
Max. torque T2α
583 Nm
Emergency stop torque
1,200 Nm
Max. input speed
7,500 min-1
Permitted average input speed
3,500 min-1
Max. tilting moment
550 Nm
Max. axial force
4,800 N
Mass moment of inertia
0.87 kgcm2
Weight
5.6 kg
Lubrication
Lubricated for life
Max. permitted housing temperature
90 °C
Protection class
IP 65
Operating noise
≤ 57 dB(A)




Performance data DQF 200


Standard: i=4,5,7,8,10,16,20,21,25,28,31,32,35,40,50,61,64,70,91,100

Max. torque 605 Nm

Max. backlash ≤ 3 arcmin


high torque : i=22,27.5,38.5,55,66,88,110,154,220

Max. torque 1,402 Nm

Max. backlash ≤ 1 arcmin



Performance data
Max. torque T2α
1,402 Nm
Emergency stop torque
2,375 Nm
Max. input speed
6,250 min-1
Permitted average input speed
3,000 min-1
Max. tilting moment
1,335 Nm
Max. axial force
6,130 N
Mass moment of inertia
3.8 kgcm2
Weight
12.5 kg
Lubrication
Lubricated for life
Max. permitted housing temperature
90 °C
Protection class
IP 65
Operating noise
≤ 61 dB(A)




Performance data DQF 255

Standard: i=4,5,7,8,10,16,20,21,25,28,31,32,35,40,50,61,64,70,91,100

Max. torque 2,560 Nm

Max. backlash ≤ 3 arcmin

high torque : i=22,27.5,38.5,55,66,88,110,154,220

Max. torque 3,822 Nm

Max. backlash ≤ 1 arcmin


Performance data
Max. torque T2α
3,822 Nm
Emergency stop torque
6,500 Nm
Max. input speed
5,625 min-1
Permitted average input speed
2,500 min-1
Max. tilting moment
3,280 Nm
Max. axial force
10,050 N
Mass moment of inertia
16.6 kgcm2
Weight
33.1 kg
Lubrication
Lubricated for life
Max. permitted housing temperature
90 °C
Protection class
IP 65
Operating noise
≤ 62 dB(A)



Performance data DQF 285    i=5-100

Standard: i=5,7,8,10,20,21,25,31,32,35,50,61,64,70,91,100

Max. torque 5,600 Nm

Max. backlash ≤ 3 arcmin


high torque : i=5.5,22,27.5,38.55,66,88,110,154,220

Max. torque 7,360 Nm

Max. backlash ≤ 2 arcmin

Performance data
Max. torque T2α
7,360 Nm
Emergency stop torque
10,938 Nm
Max. input speed
3,125 min-1
Permitted average input speed
1,000 min-1
Max. tilting moment
3,900 Nm
Max. axial force
33,000 N
Mass moment of inertia
129 kgcm2
Weight
55 kg
Lubrication
Lubricated for life
Max. permitted housing temperature
90 °C
Protection class
IP 65
Operating noise
≤ 65 dB(A



Performance data   DQF 355


Standard: i=5,7,8,10,20,21,25,31,32,35,50,61,64,70,91,100

Max. torque 9,600 Nm

Max. backlash ≤ 3 arcmin


high torque : i=5.5,22,27.5,38.55,66,88,110,154,220

Max. torque 13,000Nm

Max. backlash ≤ 2 arcmin


Performance data
Max. torque T2α
13000Nm
Emergency stop torque
18,750 Nm
Max. input speed
3,125 min-1
Permitted average input speed
900 min-1
Max. tilting moment
6,600 Nm
Max. axial force
50,000 N
Mass moment of inertia
175 kgcm2
Weight
80 kg
Lubrication
Lubricated for life
Max. permitted housing temperature
90 °C
Protection class
IP 65
Operating noise
≤ 70 dB(A)




Performance data   DQF 480


Ratio : 22 30.25 66 88 110 121 154 220 302.5

Performance data
Max. torque T2α
25,000 Nm
Emergency stop torque
44,000 Nm
Max. input speed
3,000 min-1
Permitted average input speed
2,000 min-1
Max. tilting moment
31,600 Nm
Max. axial force
100,000 N
Mass moment of inertia
101 kgcm2
Weight
190 kg
Lubrication
Lubricated for life
Max. permitted housing temperature
90 °C
Protection class
IP 65
Operating noise
≤ 68 dB(A)
