DRF Planetary Gearbox
DSG 8000 Spindle drive
Full power with the highest precision. Drive technology from ANDRlZDS
DRF+ hypoid gearboxes bevel units
Space-saving right-angle precision with output shaft
The representatives of our versatile hypoid gearboxes with DPF+ compatible output geometry.
DRF+ gearboxes are appreciated for their high precision and efficiency as well as the possibility to combine different options for the gearbox output.
With an optional planetary pre-stage it is possible to reach highest input speeds.

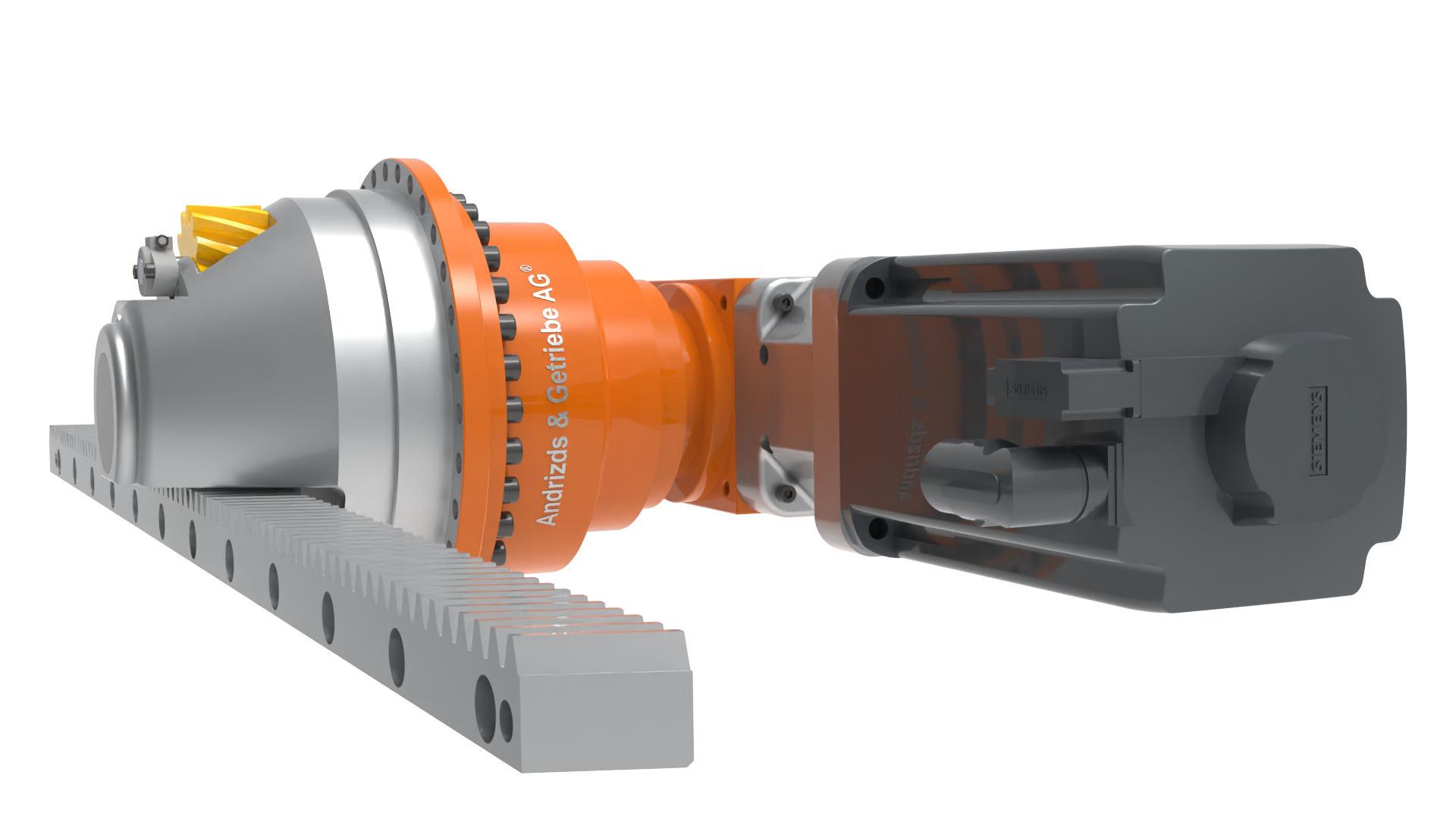

DRF planetary gearbox
| Sizes | 64,90,110,140,200,255,285,355 | |
| Nominal output torque S5 | T2N [Nm] | Up to 5600Nm |
| Acceleration torque S5 | T2B [Nm] | Up to 8400Nm |
| Ratios | i | From to 3 to 100 |
| Backlash | Jt [arcmin] | 1 ; 3 ; 5 |
| Rigidity (Stiffness) | •• | |
| Input Speed | ••• | |
| Adaptability | ••• | |
| Noise | ••• | |
| Duty cycle | S5 | 60% |
| S1 | 100% |
Performance data： DRF-064-GF1-3-0E1-1K00
Max. torque T2α
36 Nm
Emergency stop torque
40 Nm
Max. input speed
7,500 min-1
Permitted average input speed
2,500 min-1
Max. tilting moment
251 Nm
Max. axial force
2,400 N
Max. lateral force
2,700 N
Mass moment of inertia
0.52 kgcm2
Weight
2.9 kg
Lubrication
Lubricated for life
Max. permitted housing temperature
90 °C
Protection class
IP 65
Operating noise
≤ 64 dB(A)
Performance data： DRF-110-GF1-3-0E1-1K00
Max. torque T2α
84 Nm
Emergency stop torque
95 Nm
Max. input speed
7,500 min-1
Permitted average input speed
2,300 min-1
Max. tilting moment
437 Nm
Max. axial force
3,400 N
Max. lateral force
4,000 N
Mass moment of inertia
1.46 kgcm2
Weight
4.8 kg
Lubrication
Lubricated for life
Max. permitted housing temperature
90 °C
Protection class
IP 65
Operating noise
≤ 66 dB(A)
Performance data ：DRF-140-GF1-3-0E1-1K00
Max. torque T2α
204 Nm
Emergency stop torque
220 Nm
Max. input speed
5,500 min-1
Permitted average input speed
2,200 min-1
Max. tilting moment
833 Nm
Max. axial force
5,700 N
Max. lateral force
6,300 N
Mass moment of inertia
4.64 kgcm2
Weight
9.3 kg
Lubrication
Lubricated for life
Max. permitted housing temperature
90 °C
Protection class
IP 65
Operating noise
≤ 66 dB(A)
Performance data： DRF-200-GF1-3-0E1-1K00
Max. torque T2α
360 Nm
Emergency stop torque
400 Nm
Max. input speed
5,000 min-1
Permitted average input speed
1,900 min-1
Max. tilting moment
1,692 Nm
Max. axial force
9,900 N
Max. lateral force
9,500 N
Mass moment of inertia
24.97 kgcm2
Weight
22.6 kg
Lubrication
Lubricated for life
Max. permitted housing temperature
90 °C
Protection class
IP 65
Performance data： DRF-255-GF1-3-0E1-1K00
Max. torque T2α
768 Nm
Emergency stop torque
900 Nm
Max. input speed
4,500 min-1
Permitted average input speed
1,600 min-1
Max. tilting moment
3,213 Nm
Max. axial force
14,200 N
Max. lateral force
14,700 N
Mass moment of inertia
73.3 kgcm2
Weight
45.4 kg
Lubrication
Lubricated for life
Max. permitted housing temperature
90 °C
Protection class
IP 65
Operating noise
≤ 68 dB(A)
