Screw Jacks
KE High-performance screw jack
Screw Jacks
Lifting forces 5 to 1000 kN
Drive speed up to 3000 min-1
Suitable for medium and high lifting speeds
Features and processing

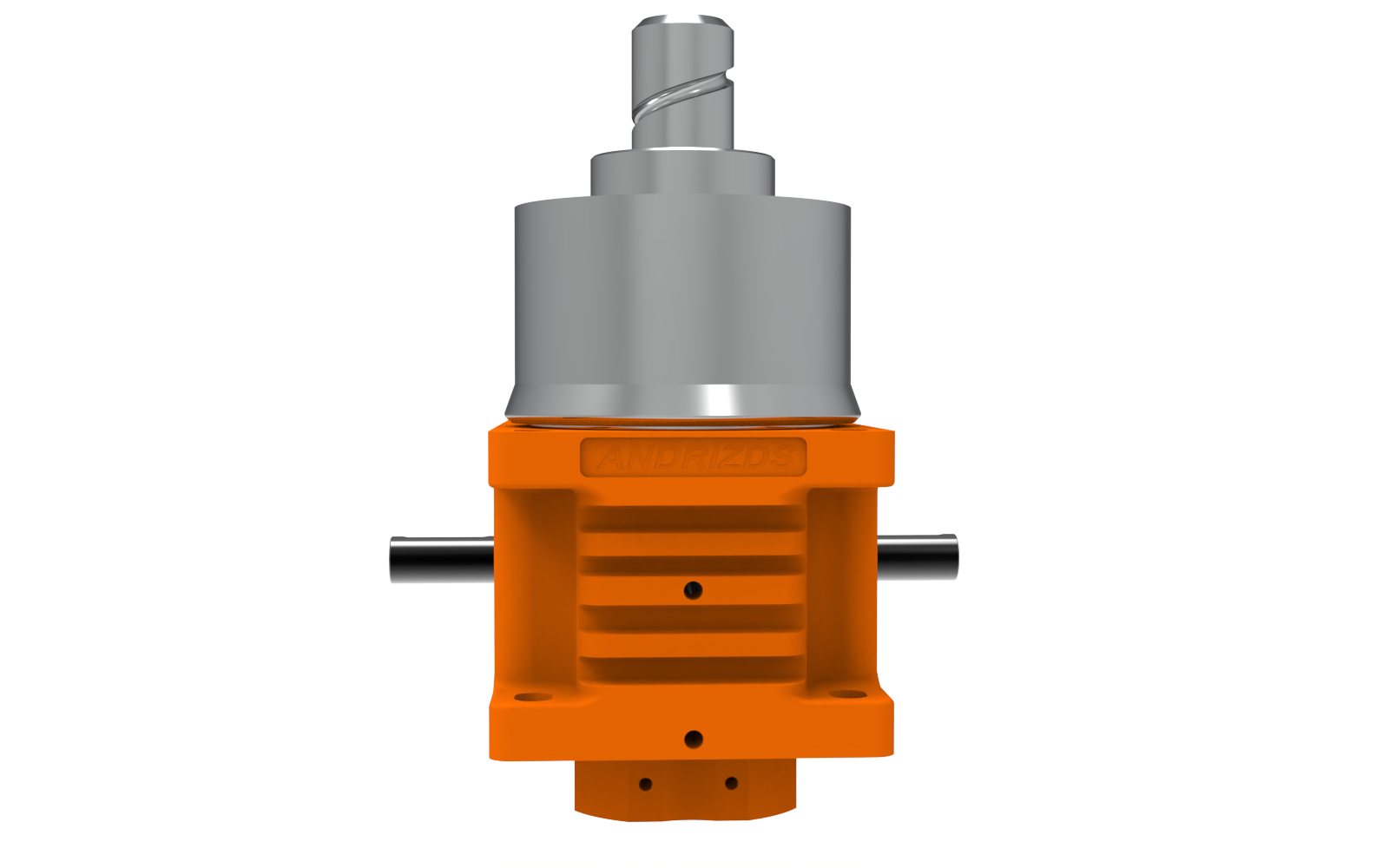

The high performance worm gear screw jacks KE has been developed specifically for the dynamic use at medium and high lifting speeds and an increased duty cycle.

The housing made of spheroidal graphite iron with the cast-on cooling fins is designed in such a way that high heat dissipation to the surrounding area is ensured.

Features and processing

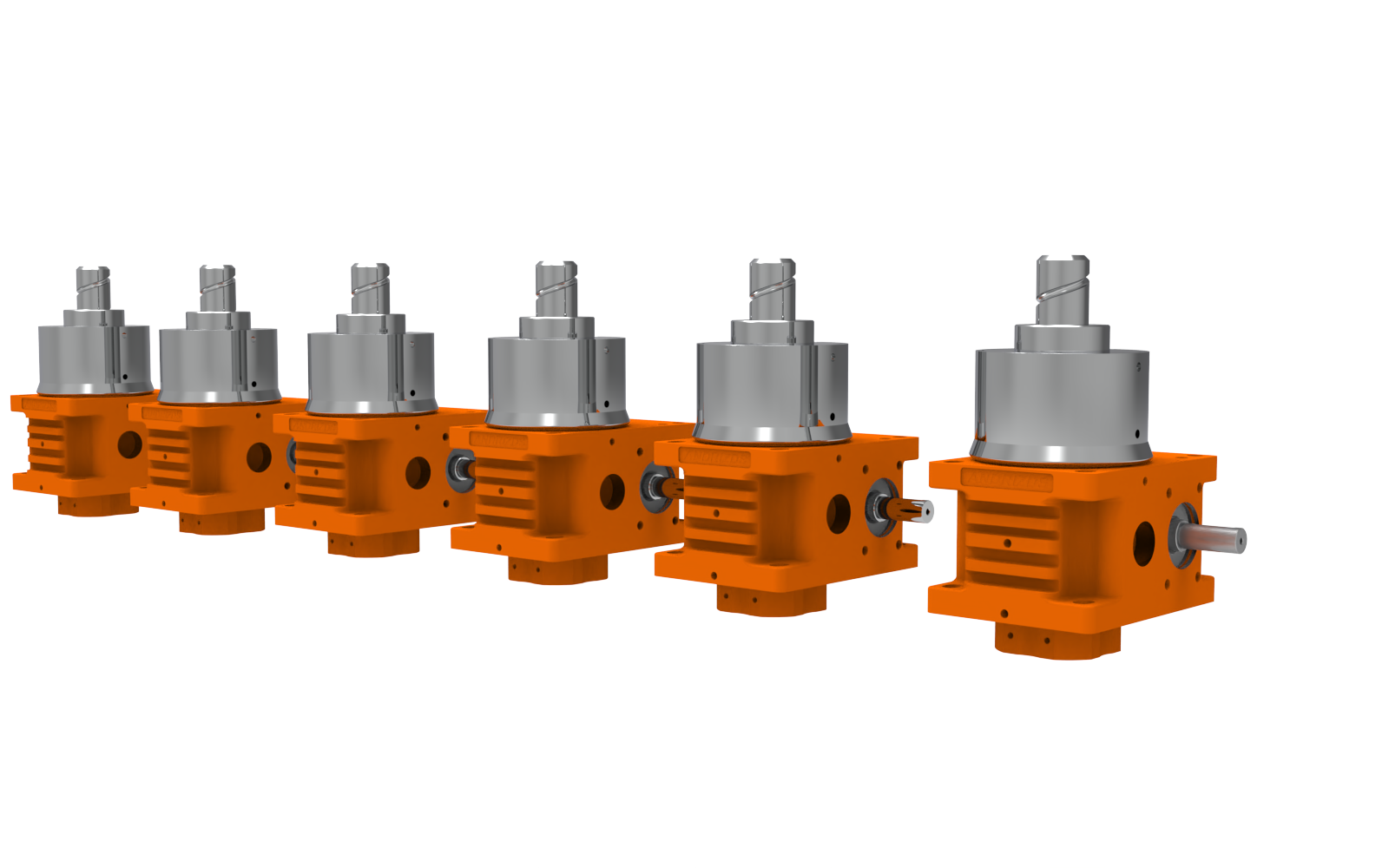

8 different sizes
Lifting capacities from 5 to 1000 kN / 500kg up to 100t
Input speeds up to 3000 min-1
Self-locking trapezoidal screw
Separate lubrication circuits: Tr screw with grease-lubrication and worm gears with oil lubrication
Worm gear pairs in two ratio steps (normal „N“ and slow „L“)
Worm-drive shaft case-hardened and ground
Patented gearing construction with different heat zones for medium and high lifting speeds
Possible usage according to directive 2014/34/EU (ATEX)
