DPR -M planetary gearbox
DPR+ hypoid gearboxes
Power and precision in a compact design

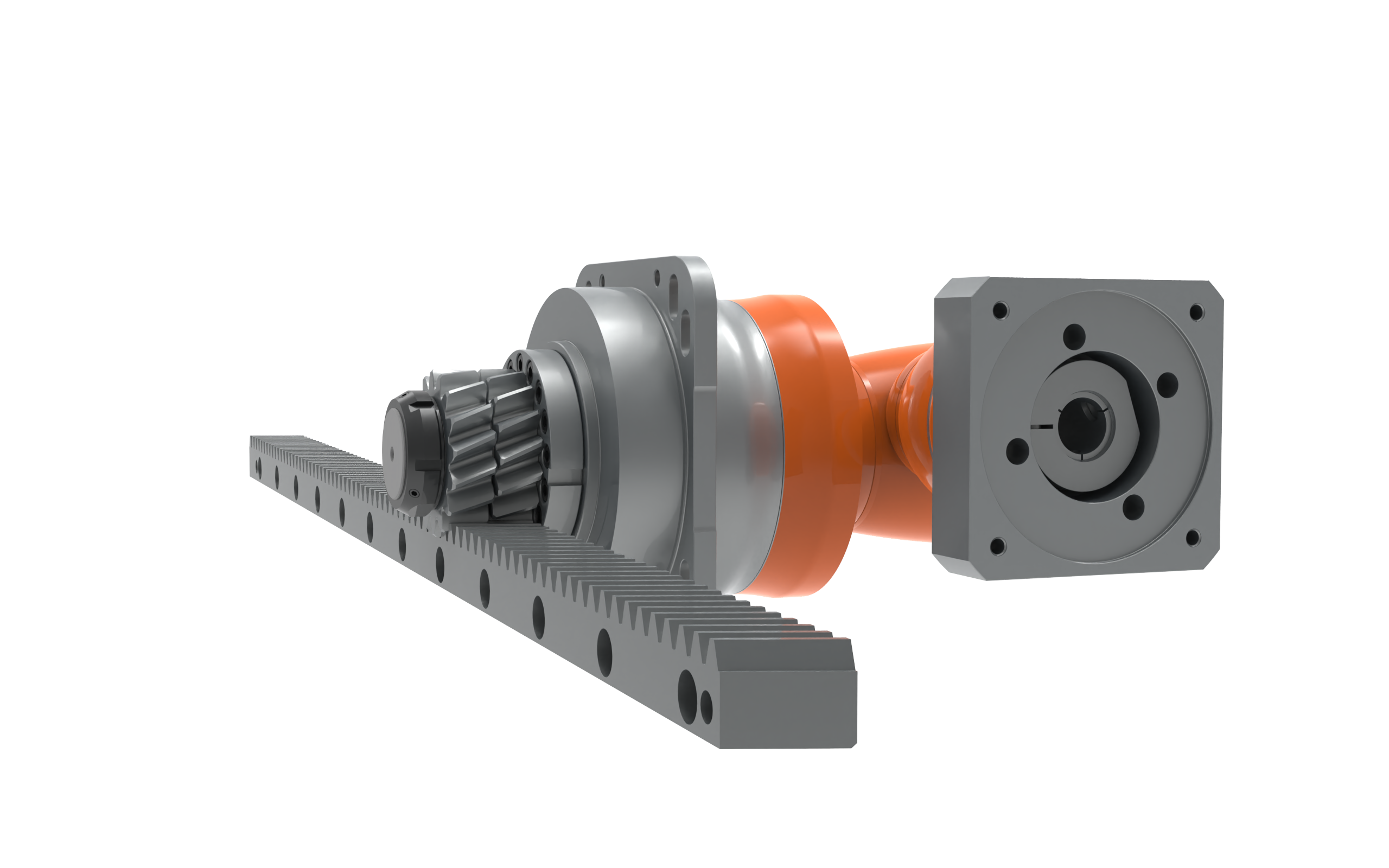

The Premium planetary gearbox RP+, perfect for rack and pinion due to reinforced bearings and a special output interface,
are now available in a right-angle version DRK+ with hypoid gearing.
The axis offset of hypoid gearboxes allows both higher ratios in one section (ratio i = 3 – 10) as well as higher torques compared to bevel gearboxes.The high torque density allows for an extremely compact,
space-saving design. The mesh frequency and high torsional rigidity of the gearbox are also extremely impressive since
they ensure a higher degree of positioning accuracy and extremely smooth operation
Consistently high performance
Constant backlash throughout the service life of the gearbox ensures a consistently high performance.
Low maintenance
Highest quality standards guarantee a long service life and extend maintenance intervals.
Machine Interface
Integrated slotted holes ease up the positioning of rack and pinion while increasing the overall system rigidity through the elimination of additional plates.
Forces
Reinforced bearings withstand the highest forces – while maintaining a compact design
Compactness
The right-angle design allows for shorter machine concepts due to being short in the axial plane.
Positioning accuracy
Minimal backlash and extreme rigidity ensure maximum positioning accuracy at the tool center point.
Reliability
Extremely reliable gearboxes prevent cost-intensive machine breakdowns.
Performance data
DPR 135-MA3-48-0k1-A
Ratio：48 66 88 110 137.5 154 220 330 385 462 577.5 770 1,078 1,540 2,695 3,850 5,500
Max. torque T2α1,270 Nm
Emergency stop torque1,520 Nm
Max. input speed7,500 min-1
Permitted average input speed2,200 min-1
Max. tilting moment3,600 Nm
Max. axial force10,000 N
Max. lateral force24,500 N
Mass moment of inertia1.7 kgcm2
Weight24.5 kg
LubricationLubricated for life
Max. permitted housing temperature90 °C
Protection classIP 65
Operating noise≤ 68 dB(A)
Performance data
DPR 167-MA3-48-0k1-A
Ratio：48 66 88 110 137.5 154 220 330 385 462 577.5 770 1,078 1,540 2,695 3,850 5,500
Performance data
Max. torque T2α3,264 Nm
Emergency stop torque3,520 Nm
Max. input speed5,500 min-1
Permitted average input speed2,100 min-1
Max. tilting moment11,000 Nm
Max. axial force26,000 N
Max. lateral force55,000 N
Mass moment of inertia5.74 kgcm2
Weight72 kg
LubricationLubricated for life
Max. permitted housing temperature90 °C
Protection classIP 65
Operating noise≤ 70 dB(A)
Performance data
DPR200-MA3-48-0k1-A
Ratio：48 66 88 110 137.5 154 220 330 385 462 577.5 770 1,078 1,540 2,695 3,850 5,500
Performance data
Max. torque T2α7,535 Nm
Emergency stop torque8,800 Nm
Max. input speed5,000 min-1
Permitted average input speed1,800 min-1
Max. tilting moment21,000 Nm
Max. axial force58,500 N
Max. lateral force81,000 N
Mass moment of inertia28 kgcm2
Weight121 kg
LubricationLubricated for life
Max. permitted housing temperature90 °C
Protection classIP 65
Operating noise≤ 71 dB(A)
Performance data
DPR 276-MA3-48-0k1-A
Ratio：48 66 88 110 137.5 154 220 330 385 462 577.5 770 1,078 1,540 2,695 3,850 5,500
Performance data
Max. torque T2α10,450 Nm
Emergency stop torque19,800 Nm
Max. input speed4,500 min-1
Permitted average input speed1,500 min-1
Max. tilting moment34,000 Nm
Max. axial force67,500 N
Max. lateral force121,000 N
Mass moment of inertia82.98 kgcm2
Weight173 kg
LubricationLubricated for life
Max. permitted housing temperature90 °C
Protection classIP 65
Operating noise≤ 71 dB(A
Performance data
DPR 327-MA3-48-0k1-A
Ratio：48 66 88 110 137.5 154 220 330 385 462 577.5 770 1,078 1,540 2,695 3,850 5,500
Performance data
Max. torque T2α10,450 Nm
Emergency stop torque19,800 Nm
Max. input speed4,500 min-1
Permitted average input speed1,500 min-1
Max. tilting moment34,000 Nm
Max. axial force67,500 N
Max. lateral force121,000 N
Mass moment of inertia82.98 kgcm2
Weight173 kg
LubricationLubricated for life
Max. permitted housing temperature90 °C
Protection classIP 65
Operating noise≤ 71 dB(A
Performance data
DPR 368-MA3-48-0k1-A
Ratio：48 66 88 110 137.5 154 220 330 385 462 577.5 770 1,078 1,540 2,695 3,850 5,500
Performance data
Max. torque T2α10,450 Nm
Emergency stop torque19,800 Nm
Max. input speed4,500 min-1
Permitted average input speed1,500 min-1
Max. tilting moment34,000 Nm
Max. axial force67,500 N
Max. lateral force121,000 N
Mass moment of inertia82.98 kgcm2
Weight173 kg
LubricationLubricated for life
Max. permitted housing temperature90 °C
Protection classIP 65
Operating noise≤ 71 dB(A
