DCP -Cycloid Planetary Units

CUSTOMIZED DESIGN AND PRODUCTION:

Are you looking for a customized Design?

Custom-made projects are competitive advantages that allow companies to conquer market sectors with greater ease,

making machines unique, which use customized cycloidal or planetary gearboxes.

we have been specialized in customized gearboxes,

that the majority of our customers have used and use every day in the design and construction of machines with characteristics much higher than the standard.

Discover the complete range of Andrizds & Getriebe AG Gears gearboxes, for different application sectors,

such as centrifugal separation, steel industry, chemicals and automation, with high reliability over time and dedicated assistance from our staff.

We create tailor-made projects based on the specific needs of the customer, creating the prototype at the same cost of production, without surcharges.

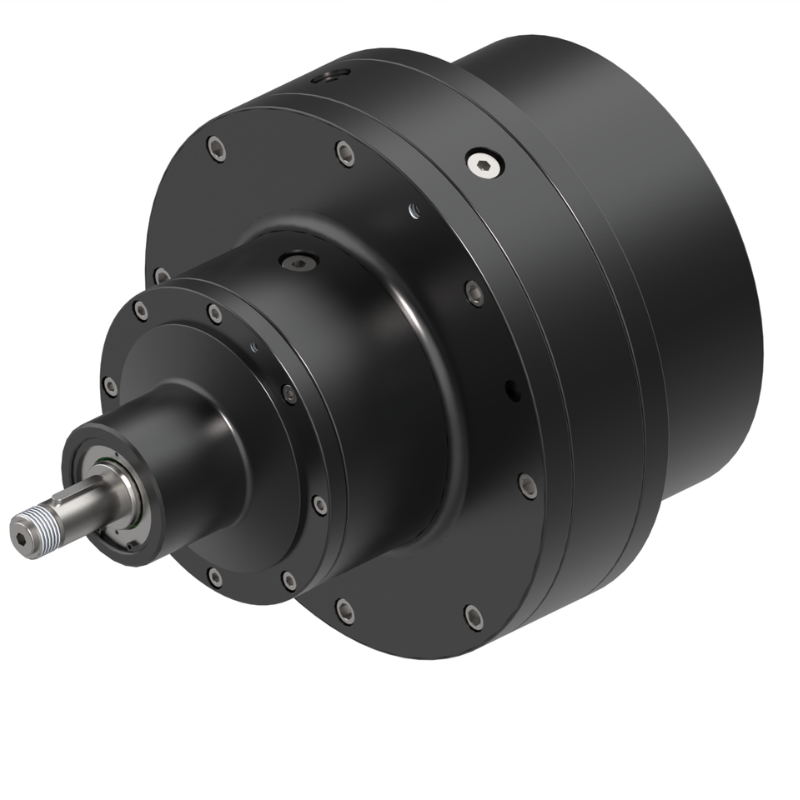

Cycloidal Gearbox With Planetary Gear

Andrizds & Getriebe AG   Gears Cycloidal/Planetary gearboxes guarantee maximum reliability and durability over time.

Basic features:

12 modular construction sizes

11 gears ratios:

from 1:45 to 1:261 (45/51/63/75/87/105/129/153/177/213/261) for series ON gearboxes ( for centrifuge with a trailing scroll for application when conveyor turn slower than bowl );

from 1:60 to 1:348 (60/68/84/100/116/140/172/204/236/284/348 ) for series OV gearboxes ( for centrifuge with a leading scroll for application when conveyor turn faster than bowl).

Torque: from 600Nm to 45.000 Nm

Dynamic balance according ISO1940

High security level and long lasting

Internal oil lubrication, oil bath lubrication or by recirculating hydraulic unit

ATEX Certification in accordance with group 2

Specific material cover available, suitable for food application.

Construction features:

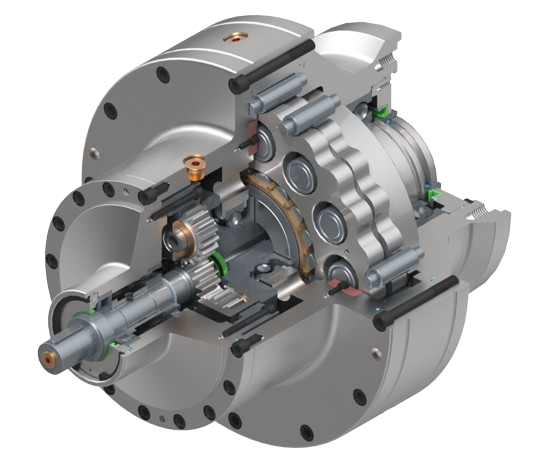

Coaxial cycloidal gearbox ( double-stage cycloidal gearbox with planetary imput stage)

Dimensions: from ⱷ150mm to ⱷ750mm

Mounted with seals and O-rings resistant to high temperature and pressure.
