DSG 8000 Spindle drive

Accept, customize DSG 8000-12000   2-speed control planetary gearbox used as a spindle drive                       ( 100% Made in Germany)

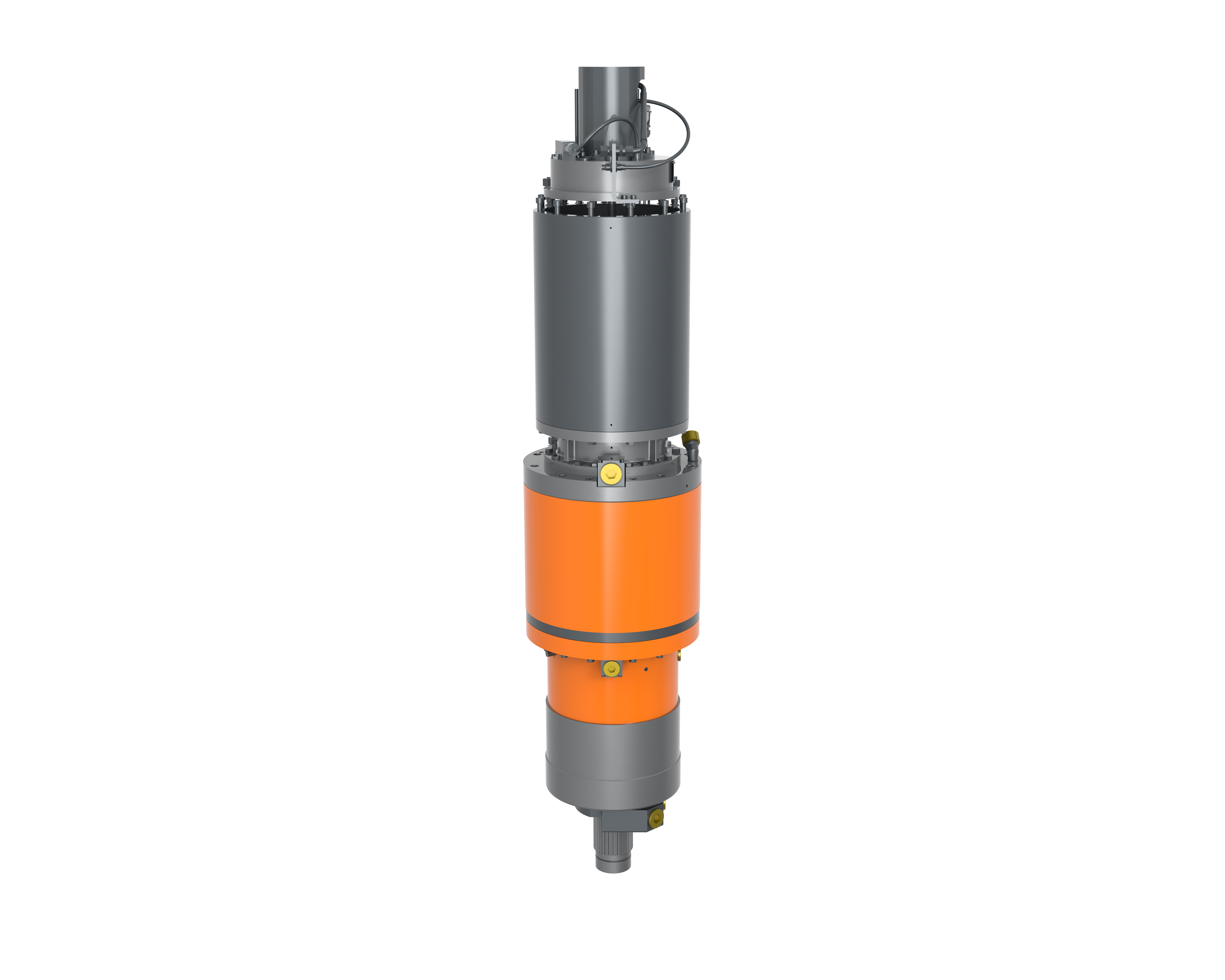

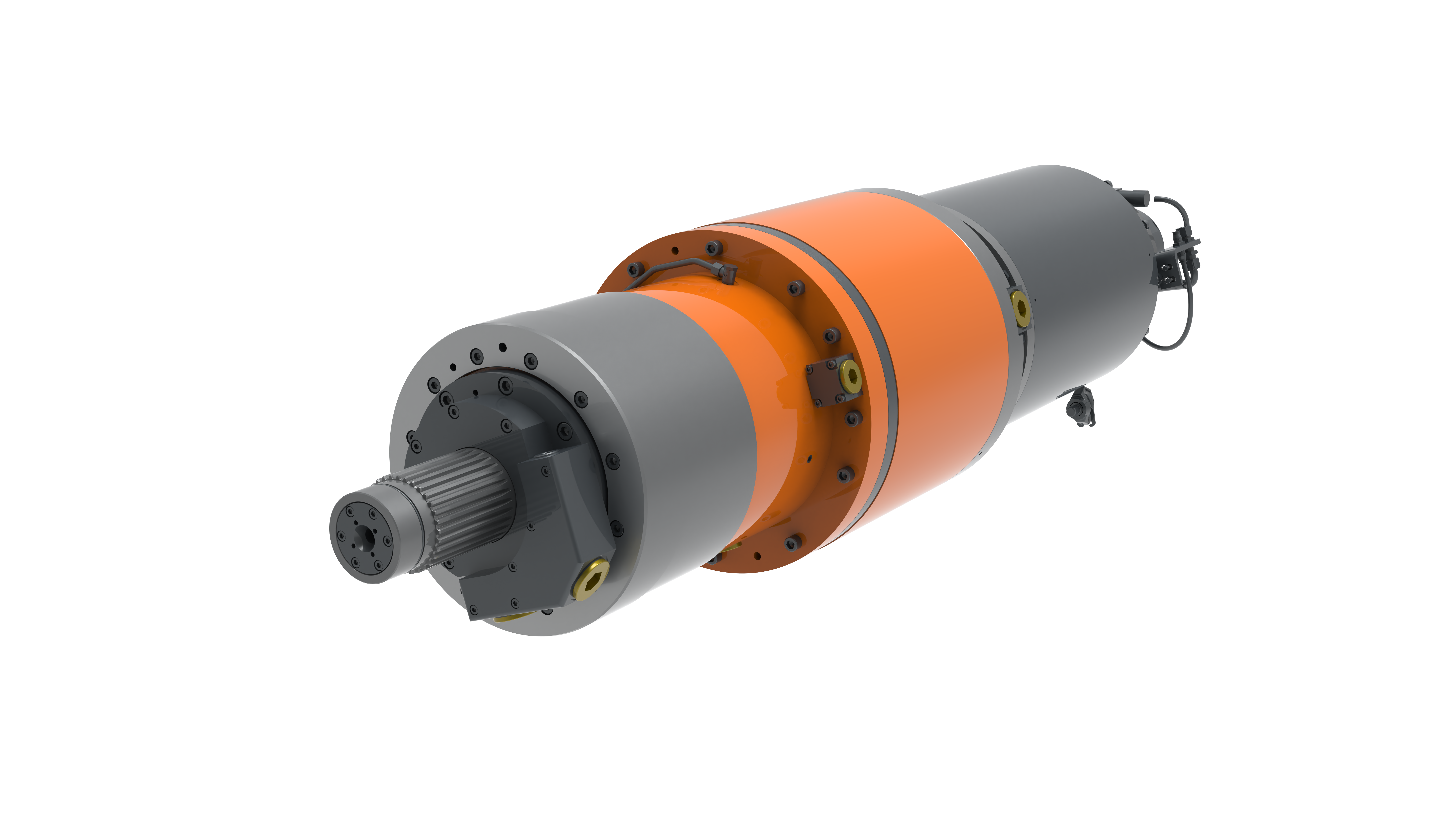

Spindle drive DSG 12000   with motor unit

The planetary gearboxes DSG12000   made by Andrizds & Getriebe AG® are available with the following power data:

Overview

Technical Data

Developed especially for heavy-duty machine tools and for milling machines, lathes and boring mills in particular, the planetary gearbox series never fails to impress with a power range of 30-142 kW and numerous other advantages:

DMG3000-10

Siemens motors:
1st Drive 1:1 / 1:4 German Andritz Spindle Gearbox GM3
S1 continuous operation mode
Rated input speed: -1500rpm
1:1 rated input speed: 1500rpm
1:4 Rated input speed: 250rpm
Rated input torque: +300NM
1:1 Rated Input Torque: 300NM
1:4 Rated input torque: 1200NM
-----------------------------------------------------------------------------------------------------------------------------------------------------
1:1 rated input speed: 1500rpm
1:5.5 Rated input speed: 272rpm
Rated input torque: +300NM
1:1 Rated Input Torque: 300NM
1:5.5 Rated input torque: 1650NM
-------------------------------------------------------------------------------------------
DMG3000-10/ Secondary Transmission 1:2.5 / 1:10 & ANDRIZ Spindle GearboxG1000
Transmission chain parameters
1:1.25 Modulus 3
1:2 Modulus 2
-------------------------------------------------------------------------------------------
Rated input speed: -1500rpm
1:2.5 Rated input speed: 652rpm
1:10 Rated input speed: 150rpm
-------------------------------------------------------------------------------------------
Rated input torque: +300NM
1:2.5 Rated Input Torque: 690NM
1:10 Rated Input Torque: 3000NM
-------------------------------------------------------------------------------------------------------------
DMG3000-13.75 / Secondary Transmission 1:2.5 / 1:13.75 & ANDRIZ SpindleGearbox G1000
Transmission chain parameters
1：1.15
1：2
-------------------------------------------------------------------------------------------
Rated input speed: -1500rpm
1:2.5 Rated input speed: 652rpm
1:13.75 Rated input speed: 109rpm
-------------------------------------------------------------------------------------------
Rated input torque: +300NM
1:2.5 Rated Input Torque: 690NM
1:13.75 Rated input torque: 4125NM
-------------------------------------------------------------------------------------------
Center outlet pressure:
Flow rate: 30L/min
Pressure: 60 bar/ 6 Mpa

DMG3000-9.2

Siemens motors:
1st Drive 1:1 / 1:4 German Andritz Spindle Gearbox GM3
S1 continuous operation mode
Rated input speed: -1500rpm
1:1 rated input speed: 1500rpm
1:4 Rated input speed: 250rpm
Rated input torque: +300NM
1:1 Rated Input Torque: 300NM
1:4 Rated input torque: 1200NM
----------------------------------------------------------------------------------------------------------------
1:1 rated input speed: 1500rpm
1:5.5 Rated input speed: 272rpm
Rated input torque: +300NM
1:1 Rated Input Torque: 300NM
1:5.5 Rated input torque: 1650NM
-------------------------------------------------------------------------------------------
DMG3000-9.2/ Secondary Transmission 1:2.3 / 1:9.2 German Andritz SpindleGearbox G1000
Transmission chain parameters
1:1.15 Modulus 3
1:2 Modulus 2
-------------------------------------------------------------------------------------------
Rated input speed: -1500rpm
1:2.3 Rated input speed: 652rpm
1:9.2 Rated input speed: 163rpm
-------------------------------------------------------------------------------------------
Rated input torque: +300NM
1:2.3 Rated Input Torque: 690NM
1:9.2 Rated input torque: 2760NM
-------------------------------------------------------------------------------------------------------------
DMG3000-12.66 / 2nd drive 1:2.3 / 1:12.65 German ANDRIZ spindle gearboxG1000
Transmission chain parameters
1：1.15
1：2
-------------------------------------------------------------------------------------------
Rated input speed: -1500rpm
1:2.3 Rated input speed: 652rpm
1:12.65 Rated input speed: 118.57rpm
-------------------------------------------------------------------------------------------
Rated input torque: +300NM
1:2.3 Rated Input Torque: 690NM
1:12.65 Rated input torque: 3795NM
-------------------------------------------------------------------------------------------
Center outlet pressure:
Flow rate: 30L/min
Pressure: 60 bar/ 6 Mpa

-------------------------------------------------------------------------------------------

DMG6000-10

S1 continuous operation mode
1st Stage Transmission 1:1 / 1:4 German Andritz Spindle Gearbox GM8
Rated input speed: -1000rpm
1:1 Rated input speed: 1000rpm
1:4 Rated input speed: 250rpm
Rated input torque: +600NM
1:1 Rated input torque: 600NM
1:4 Rated input torque: 2400NM
-------------------------------------------------------------------------------------------
DMG6000-10/Secondary Drive 1:2.5 / 1:10 ANDRIZ Spindle Gearbox G2000

-------------------------------------------------------------------------------------------
Rated input speed: -1000rpm
1:2.5 Rated input speed: 400rpm
1:10 Rated input speed: 100rpm
-------------------------------------------------------------------------------------------
Rated input torque: +600NM
1:2.5 Rated Input Torque: 1500NM
1:10 Rated Input Torque: 6000NM
Center outlet pressure:
Flow rate : 30L/min
Pressure : 60 bar/ 6 Mpa

DMG6000-9.2

Siemens motors:

1st Stage Transmission 1:1 / 1:4 German Andritz Spindle Gearbox GM6
S1 continuous operation mode
Rated input speed: -1000rpm
1:1 Rated input speed: 1000rpm
1:4 Rated input speed: 250rpm
Rated input torque: +600NM
1:1 Rated input torque: 600NM
1:4 Rated input torque: 2400NM
-------------------------------------------------------------------------------------------
DMG6000-9.2 Secondary Transmission 1:2.3 / 1:9.2 German Andritz Spindle GearboxG2000

-------------------------------------------------------------------------------------------
Rated input speed: -1000rpm
1:2.3 Rated input speed: 434rpm
1:9.2 Rated input speed: 108rpm
-------------------------------------------------------------------------------------------
Rated input torque: +600NM
1:2.3 Rated input torque: 1380NM
1:9.2 Rated input torque: 5520NM
Center outlet pressure:
Flow rate: 30L/min
Pressure: 60 bar/ 6 Mpa

DMG8000-10

S1continuous operation mode
1st Stage Transmission 1:1 / 1:4 German Andritz Spindle Gearbox GM8
Rated input speed: -1000rpm
1:1 Rated input speed: 1000rpm
1:4 Rated input speed: 250rpm
Rated input torque: +800NM
1:1 Rated Input Torque: 800NM
1:4 Rated input torque: 3200NM
-------------------------------------------------------------------------------------------
DMG8000-10/2D Transmission 1:2.5 / 1:10 ANDRIZ Spindle Gearbox G2000
Transmission chain parameters
1: 1.25 Modulus 4
1: 2 Modulus 5
-------------------------------------------------------------------------------------------
Rated input speed: -1000rpm
1:2.5 Rated input speed: 400rpm
1:10 Rated input speed: 100rpm
-------------------------------------------------------------------------------------------
Rated input torque: +800NM
1:2.5 Rated input torque: 2000NM
1:10 Rated Input Torque: 8000NM
Center outlet pressure:
Flow rate : 60L/min
Pressure : 60 bar/ 6 Mpa
---------------------------------------

DMG8000- 9.2

Siemensmotors:
1st Stage Transmission 1:1 / 1:4 German Andritz Spindle Gearbox GM8
S1 continuous operation mode
Rated input speed: -1000rpm
1:1 Rated input speed: 1000rpm
1:4 Rated input speed: 250rpm
Rated input torque: +800NM
1:1 Rated Input Torque: 800NM
1:4 Rated input torque: 3200NM
-------------------------------------------------------------------------------------------
DMG8000-9.2/2nd Drive 1:2.3 / 1:9.2 German Andritz Spindle Gearbox G2000
Transmission chain parameters
1:1.15 Modulus 4
1:2 Modulus 5
-------------------------------------------------------------------------------------------
Rated input speed: -1000rpm
1:2.3 Rated input speed: 434rpm
1:9.2 Rated input speed: 108rpm
-------------------------------------------------------------------------------------------
Rated input torque: +800NM
1:2.3 Rated input torque: 1840NM
1:9.2 Rated input torque: 7360NM
Center outlet pressure:
Flow rate: 60L/min
Pressure: 60 bar/ 6 Mpa

DMG8000-10
1FE1147-8WM
(S1 continuous operation mode) Rated technical parameters
1st Drive 1:1 / 1:4 Spindle Gearbox GM8
Rated input speed: -1300rpm
1:1 Rated input speed: 1300rpm
1:4 Rated input speed: 325rpm
Rated input torque: +820NM
1:1 Rated input torque: 820NM
1:4 Rated input torque: 3280NM
-------------------------------------------------------------------------------------------
DMG8000-10/Secondary Drive 1:2.5 / 1:10 Spindle Gearbox G2000
Transmission chain parameters
1: 1.25 Modulus 4
1: 2 Modulus 5
-------------------------------------------------------------------------------------------
The overall output technical parameters of the spindle gearbox
Rated input speed: -1500rpm
1:2.5 Rated input speed: 600 rpm
1:10 Rated input speed: 150rpm
-------------------------------------------------------------------------------------------
Rated input torque: +820NM
1:2.5 Rated input torque: 2050NM
1:10 Rated Input Torque: 8200NM
-------------------------------------------------------------------------------------------
Center outlet pressure:
Flow rate : 60 L/min
Pressure : 60 bar
If you are selecting: Please select the spindle of BT50 specificationdirectly,
Its standard 22mm center hole perfectly matches the flow rate of 60 L/min.
If you already have equipment: Measure the center hole diameter of yourexisting spindle end face.
If it is less than 18 mm, the flow rate of 60 L/min cannot be effectivelyachieved,
Forcibly increasing the pump flow rate will only lead to an inflated pressuregauge reading (pump suffocation),
The actual flow to the tip of the knife will be greatly reduced.

-------------------------------------------------------------------------------------------
